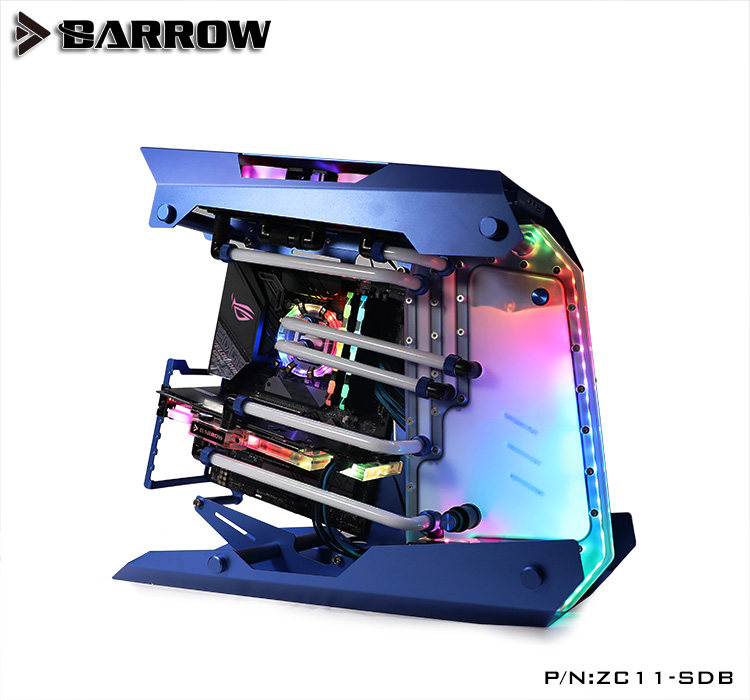

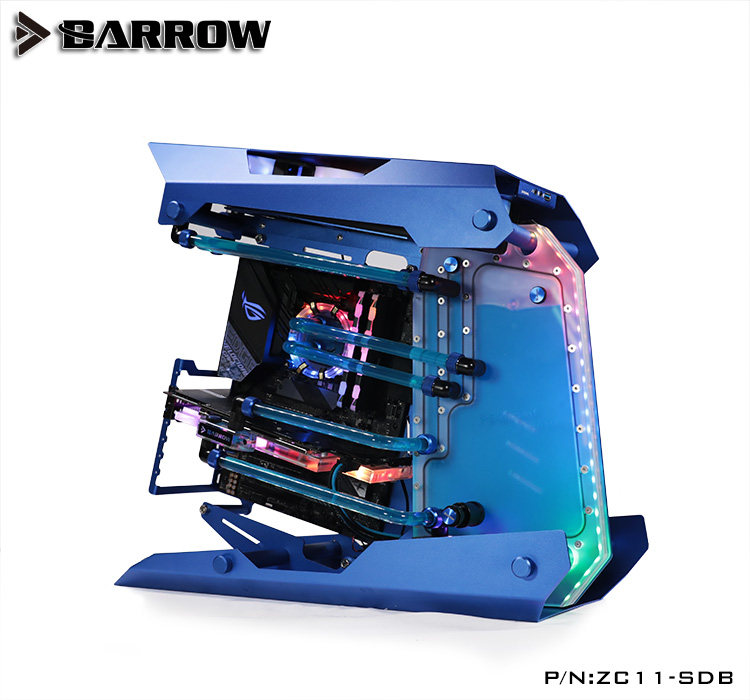

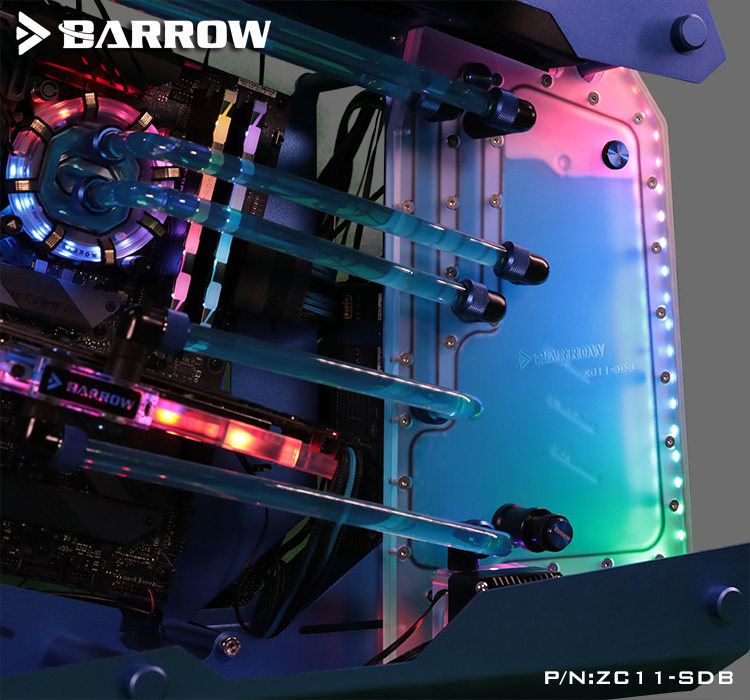

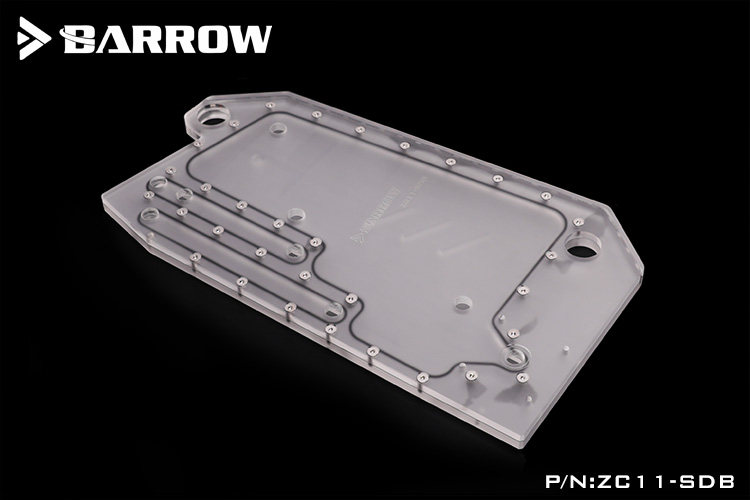

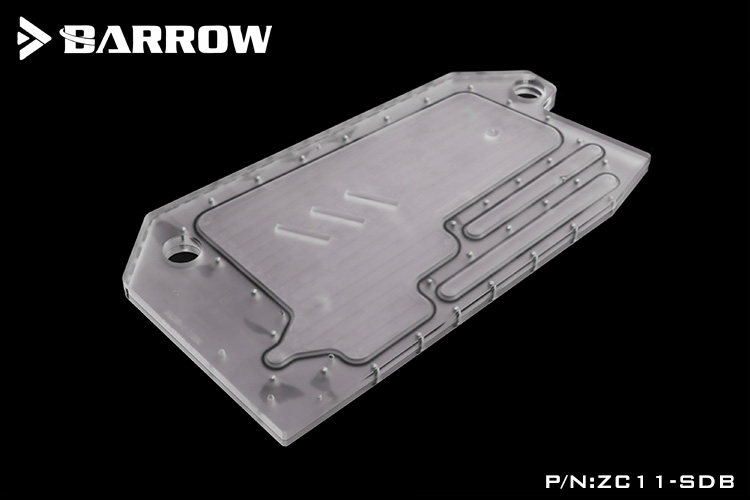

Barrow LRC2.0 waterway plate for ZG 11 open type case guide waterway plate
model：ZC11-SDB
Belong to category：ZEAGINAL
Material：
Color：Array
The product description：
The motherboard models that the water channel integrated board compatible with are:....：
ROG STRIX Z390-E GAMING
ROG STRIX Z390-H GAMING
ROG STRIX Z370-F GAMING
ROG MAXIMUS X HERO
ROG MAXIMUS X HERO (WI-FI AC)
ROG MAXIMUS Ⅸ HERO
ROG STRIX Z370-E GAMING
ROG STRIX Z370-H GAMING
ROG STRIX Z370-F GAMING
ROG STRIX B360-F GAMING
ROG STRIX Z270F GAMING
ROG STRIX Z270E GAMING
ROG STRIX Z270H GAMING
ROG MAXIMUS XI EXTREME
ROG MAXIMUS XI GENE
ROG Maximus XI Hero
ROG Maximus XI Hero Black Ops
ROG MAXIMUS VIII EXTREME/ASSEMBLY
PRIME Z370-A
PRIME Z390-A
PRIME Z390-P
TUF Z390-PRO GAMING
TUF Z370-PRO GAMING
MAXIMUS VIII HERO
MAXIMUS VIII RANGER
Z170 PRO GAMING
Z170-AR
We recommend using the above models of motherboards and more compatible motherboards will be updating at any time.
Installation double 120 radiators recommendation Parts：
| Recommended products | ||
|---|---|---|
| Name | Model | Number |
| Barrow 90°Rotary Adapter (Male to Female) | TWT90-v2.5 | 9 |
| Barrow Dual G1/4" Adjustable Aqua Link Pipe (22-31MM) | TSSXK-A01 | 1 |
| Barrow Compression Fitting - OD: 14mm Rigid Tubing (Smooth) | TLGYKN-14 | 12 |
| Barrow Male to Female Extender - 10mm | TNYZ-G10 | 2 |
| Barrow Male to Female Extender - 15mm | TNYZ-G15 | 1 |
| Barrow Male to Female Extender - 20mm | TNYZ-G20 | 1 |
| Barrow Multicolor New CD Composite plate Finish Stop Plug Fitting | TLCDT-V1 | 2 |
| Barrow Flat push type check valve（Male to Female） | TTLPFG | 1 |
| Barrow 2016 New Manual automatic integrated Exhaust valve | TPQZ-V2 | 1 |
Barrow 16ways full function RGB and fan integrated controller (support to remote control and synchronization motherboard RGB) | DK301-16 | 1 |
| Barrow 120MM Dabel-a series copper Radiator (Thick:30MM) | Dabel-30a 120 | 2 |
Barrow Aurora PWM speed control through-hole 17W pump kit for waterway plate | SPB17-T V2 | 1 |
| Barrow New Edition Water Cooling Liquid | SLYS-V2 | 2 |
Barrow 14*10 Normal temperature type PETG Tube (ID: 10MM, OD: 14MM, Length: 500MM) | PG1410-L | 6 |
Barrow RGB full color speed regulation and lighting integrated fan with Hydraulic bearing PWM speed regulation | BF04-PR | 2 |
The above list only shows the applicable connector specifications. Players can choose other products according to the above product specifications | ||
Installation 360 radiator recommendation Parts：
| Recommended products | ||
|---|---|---|
| Name | Model | Number |
| Barrow 90°Rotary Adapter (Male to Female) | TWT90-v2.5 | 12 |
| Barrow G1/4' 360°rotation offset adapter | TX360PZ | 1 |
| Barrow Compression Fitting - OD: 14mm Rigid Tubing (Smooth) | TLGYKN-14 | 12 |
| Barrow Male to Female Extender - 10mm | TNYZ-G10 | 2 |
| Barrow Male to Female Extender - 30mm | TNYZ-G30 | 1 |
| Barrow Multicolor New CD Composite plate Finish Stop Plug Fitting | TLCDT-V1 | 2 |
| Barrow Flat push type check valve（Male to Female） | TTLPFG | 1 |
| Barrow 2016 New Manual automatic integrated Exhaust valve | TPQZ-V2 | 1 |
Barrow 16ways full function RGB and fan integrated controller (support to remote control and synchronization motherboard RGB) | DK301-16 | 1 |
| Barrow 360MM Dabel-a series copper Radiator (Thick:30MM) | Dabel-30a 360 | 1 |
Barrow Aurora PWM speed control through-hole 17W pump kit for waterway plate | SPB17-T V2 | 1 |
| New Edition Water Cooling Liquid | SLYS-V2 | 2 |
Barrow 14*10 Normal temperature type PETG Tube (ID: 10MM, OD: 14MM, Length: 500MM) | PG1410-L | 6 |
Barrow RGB full color speed regulation and lighting integrated fan with Hydraulic bearing PWM speed regulation | BF04-PR | 3 |
The above list only shows the applicable connector specifications. Players can choose other products according to the above product specifications | ||
Recommended Pipe Running Method for Double 120 Cold Row Installation：
Installation 360 radiator suggestion tube layout method ：
